Oceans and lakes

Colour
Phenomena
Oceans and lakes
RGB
HRV Fog RGB
Satellite Instrument
SEVIRI

Sea, lakes, rivers (open water surfaces) appear black in the HRV Fog RGB images. See for example the Adriatic Sea, Mediterranean Sea, Baltic Sea, North Sea and several lakes in the images left and below.

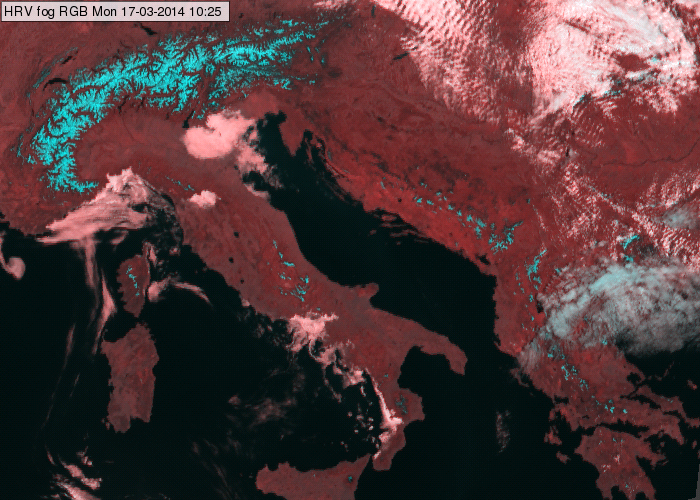

69aMeteosat, SEVIRI HRV Fog RGB for 17 March 2014, 10:25 UTC

69b

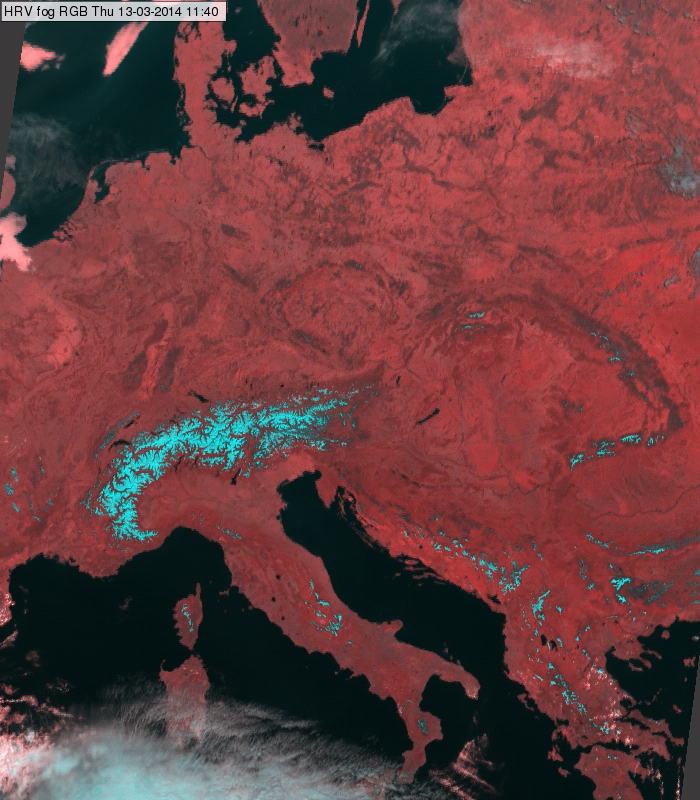

Meteosat, SEVIRI HRV Fog RGB for 13 March 2014, 11:40 UTC

Explanation of the colours of the open water surfaces (see the recipe):

The reflectivity is very low in both the NIR1.6 and the HRV channel. After performing the linear stretching the signals are still very low.
